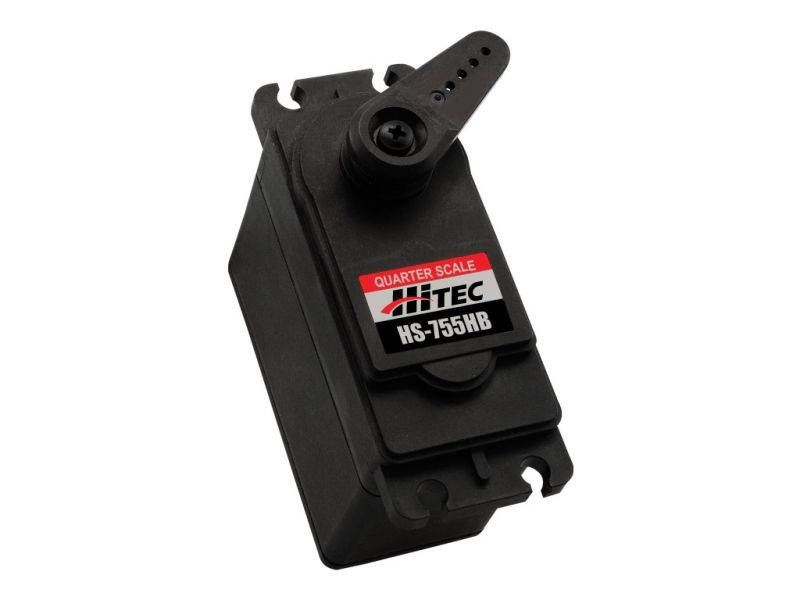

HS-755HB
29mm, Cored, Standard Voltage, Karbonite Nylon Gear Actuator (6V)
Our HS-755HB industrial actuator delivers 183 ounce-inches of torque. It features dual ball bearings and heavy-duty construction packed into a water and dust tight case. The HS-755HB is a reliable and easy to use cost effective option for moderate duty industrial applications.
Part #: 33755S
Weight: 0.25 lbs / 0.113375 kg
$34.99
Maximum of 20 units per part # are available for purchase on our website.
Contact Sales directly to discuss purchases over 20 units:
Actuator Sales
sales@hiteccs.com
| Performance Specifications | |
|---|---|
| Command Protocol |
PWM |
| Operating Voltage (V) |
Min: 4.80
Max: 6.00 |
| Weight (g) | Min: 110.00 |
| Stall Torque (kgf•cm / oz•in) |
Min: 11.0 / 152.75
Max: 13.2 / 183.31 |
| No Load Speed (sec/60°) |
Min: 0.28
Max: 0.23 |
| Running Current (mA) |
Min: 230
Max: 250 |
| Stall Current (mA) |
Min: 1500
Max: 1800 |
| Circuit |
Analog |
| Rotation |
Standard |
| Operating Voltage (V) |
Min: 4.80
Max: 6.00 |
| Torque Range |
Min (KG/CM): 13.20
Max (N/CM): 0.00 |
| Max Speed (SEC/60) | 0.23 |
| Physical Specifications | |
|---|---|
| Case Size (mm) | 29.00 |
| Dimensions (mm) | 59.0 x 29.0 x 50.0 |
| Weight (g) | 110.00 |
| Motor Type | Cored Metal Brush |
| Potentiometer |
Conventional |
| Gear Material | Heavy Duty Resin |
| Horn Gear Spline | 24 Segment / Ø5.76 |
| Case Material | Engineering Plastic |
| IP Rating |
IP54 |
Contact Sales directly for accessories and/or replacement parts:
• Case Set
• Gear Set
• Horn Set
Actuator Sales
sales@hiteccs.com
