MD141SH
10mm, Coreless, Wide Voltage, Steel Gear Actuator (7.4V)
Part #: 40141S
Weight: 0.15 lbs / 0.068025 kg
$124.99
Maximum of 20 units per part # are available for purchase on our website.
Contact Sales directly to discuss purchases over 20 units:
Actuator Sales
sales@hiteccs.com
| Performance Specifications | |
|---|---|
| Command Protocol |
PWM PWM / TTL |
| Operating Voltage (V) |
Min: 6.00
Max: 7.40 |
| Weight (g) | Min: 26.70 |
| Stall Torque (kgf•cm / oz•in) |
Min: 7.0 / 97.21
Max: 8.5 / 118.04 |
| No Load Speed (sec/60°) |
Min: 0.11
Max: 0.9 |
| Running Current (mA) |
Min: 150
Max: 200 |
| Stall Current (mA) |
Min: 2200
Max: 2700 |
| Circuit |
Digital |
| Rotation |
Standard |
| Operating Voltage (V) |
Min: 6.00
Max: 7.40 |
| Torque Range |
Min (KG/CM): 8.50
Max (N/CM): 83.00 |
| Max Speed (SEC/60) | 0.90 |
| Physical Specifications | |
|---|---|
| Case Size (mm) | 10.00 |

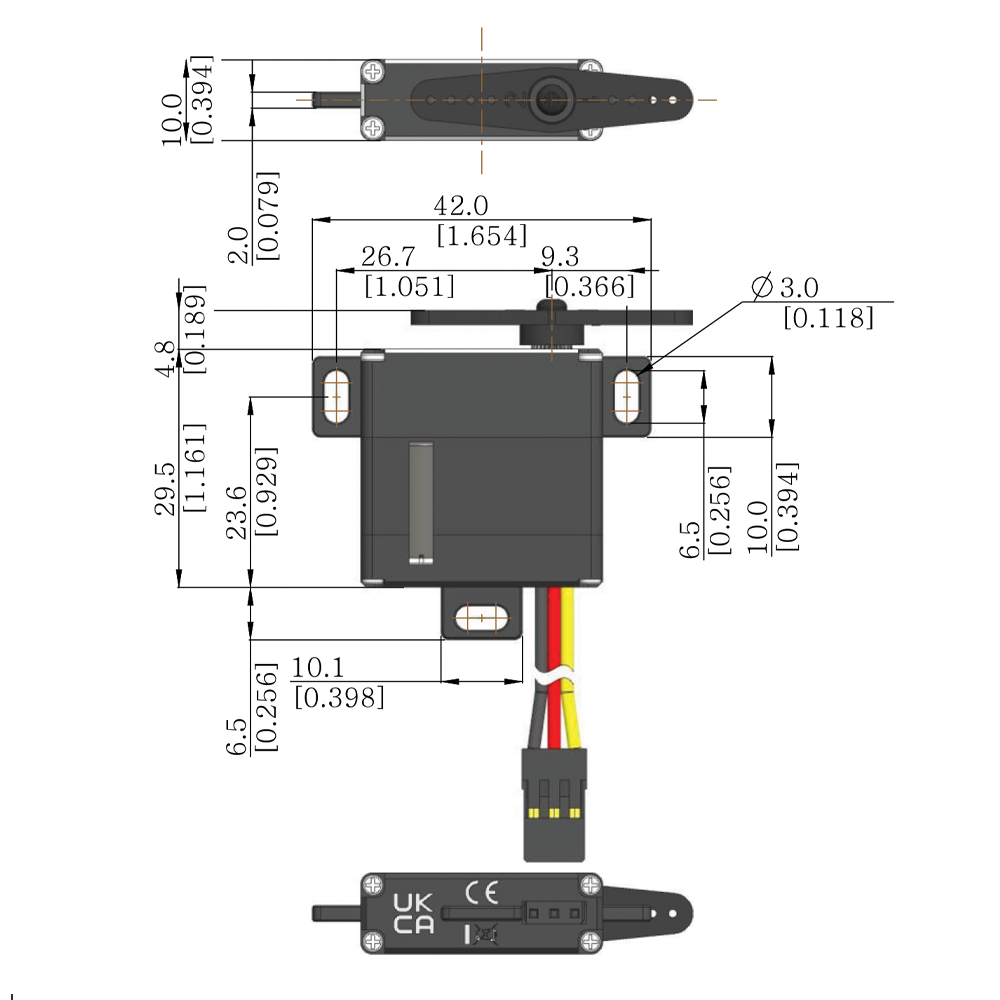

| Dimensions (mm) | 30.0 x 10.0 x 29.5 |
| Weight (g) | 26.70 |
| Motor Type | Coreless |
| Potentiometer |
Magnetic Encoder |
| Gear Material | 1 Metal-Plastic & 4 Steel |
| Horn Gear Spline | M25T (Ø5) |
| Case Material | Aluminum Alloy |
| IP Rating |
N / A |
Contact Sales directly for accessories and/or replacement parts:
• Case Set
• Gear Set
• Horn Set
Actuator Sales
sales@hiteccs.com
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset
Additional downloads can be found on our ACTUATOR RESOURCES page under our Support tab.
